Overview:
The pigging system is the answer to all the above requirements. It can be integrated into existing installations without any problems. Aseptic pigs do the work – elaborate and costly rinsing of equipment belongs to the past. Thus reproducibility, automation, small batch numbers and intermediate storage of raw materials are easily implemented.
The BJVP pigging system for the cleaning of process installations saves valuable raw material by completely recovering it. The need for costly cleaning agents, which mostly causes high water consumption for rinsing and results in a large waste water volume, plus consequently high waste disposal costs, are cut to a minimum.
Characteristics:
The following functions can be realized through Pigging
- Increase yields
- Minimum product loss
- Reduce flush waste
- Save time and money
- Reduce contamination risks, free of residual
- Changeable lips of pig can minimize the cost of consumer.
- Simplified pipe networks and reduced space.
Parameters:
| Product Catalogue | 5D elbows Pig Pigging line Pig Stop T-way valve Three-way distribution valve Electric cabinet Control System Launcher Receiver |
| Pipe Size | 1.5”~8” |
| Pressure Standard | ANSI 150# |
| Liquid Temperature | -52～380℃ |
| Liquid Viscosity | 0.1～440,000 cst |
| Material | WCB,CF8,CF8M,Alloy |
| Port Type | ASME B16.5 RF |

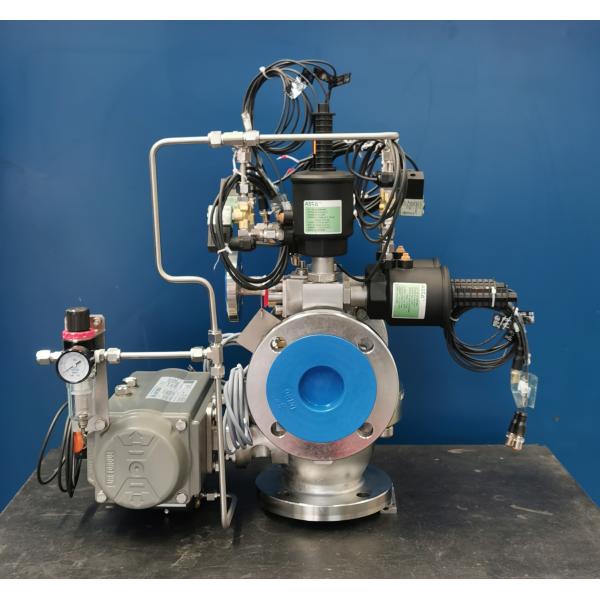

Pictures:
Applications:
- Chemical product
- Pier location product
- Manual & automatic control
- Pigging relevant accessories.
F&Q:
Q1: What can pigging system do in pipeline?
A: BJVP Pigging System can use the pig to clean the pipe line. There is no redidue and contamination between the different kind of liquid sharing the same pipe.
Q2: What is pigging equipment?
A: BJVP pigging equipment includes items such as high finishing pipe Pigging System, pig launcher/ receiver, middle station, pig detectors, pig, etc.
Q3: Where can this pigging system be used?
A: BJVP pigging equipment can be widely used in Lubricants and greases, paints and varnishes, special chemicals, perfumes and other industry applications.
Q4: How do pigs clean the pipelines?
A: Pig is pushed by forced air from the launcher to receiver, so the product and any residues in pipeline will be pushed out of the pipeline by pig.
